Jason Industrial released a Hydraulic Hose line in 2018 after decades of being a leading source of industrial hose. Since our initial launch, we listened to customer feedback and expanded our product line to better serve market needs. Our updated Hydraulic Hose Product Guide contains the additions made to our product line along with answers to commonly asked customer questions. The product guide is available for download here.
Key Updates Include
New products, which can be found throughout the catalog with the “New Product” symbol, including:
Hose with the Dreamshield™ cover, a special rubber cover compound that is 6 to 8 times more abrasion resistant than the current standard cover:
Series 5012 – SAE 100R1AT, 1SN DIN EN853 – Wrapped MSHA Cover 1-Wire Braid Hose, Dreamshield™ Extra Abrasion Resistant Cover
Series 5022 – SAE 100R2AT, 2SN DIN EN 853 – Wrapped MSHA Cover 2-Wire Braid Hose, Dreamshield™ Extra Abrasion Resistant Cover
Series 5122 – SAE100R12, DIN EN 856 R12 – MSHA Cover 4-Spiral Hose – Dreamshield™ Extra Abrasion Resistant Cover
Series 5132 – SAE 100R13, DIN EN 856 R13 – MSHA Cover – 4 or 6-Spiral Hose 5,000 PSI Constant Pressure, Dreamshield™ Extra Abrasion Resistant Cover
Series 5152 – SAE 100R15, DIN EN 856 R15 – MSHA Cover – 4 or 6-Spiral Hose 6,000 PSI Constant Pressure, Dreamshield™ Extra Abrasion Resistant Cover
Series 5162 – SAE 100R16, – MSHA Cover – 2-Wire Braid Hose 47 Dreamshield™ Extra Abrasion Resistant Cover
Series 5172 – SAE 100R17 – 3,000 PSI Constant Pressure, 1 or 2-Wire Braid Hose Dreamshield™ Extra Abrasion Resistant MSHA Cover
Series 5192 – SAE 100R19 – 4,000 PSI Constant Pressure – MSHA Wrapped Cover Dreamshield™ Extra Abrasion Resistant Cover – 2-Wire Braid Hose
JIC340 – General Production Hose Crimper with InfoCrimp™ Controller
Polyethylene Armor Guard used to protect hose assemblies from external mechanical damage
| Discontinued Part Number | Replacement Part Number |
| 1252 | 1248 |
| 1254 | 1249 |
| 1256 | 1250 |
| 4052 | 4048 |
| 4054 | 4049 |
| 4056 | 4050 |
| 4075-4516 | 4075-4216 |
| 1270-1604 | 1270-1404 |
Coupling 1271-3612 was discontinued
MyCrimp App instructions – Download our app to ensure you always have the latest safety information for using the correct hose, coupling and crimp specifications.
- Download for iOS
- Download for Android

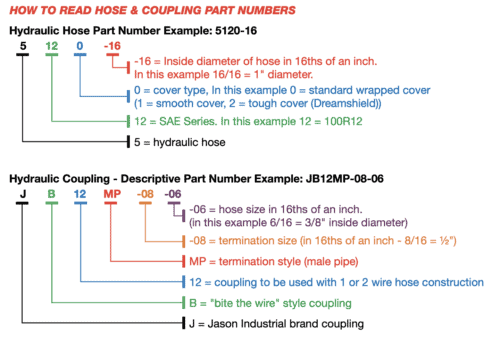

Easier to read “How to Read Hose & Coupling Part Numbers” graphic –
Updated “SAE Hose Working Pressures” chart
Updated Chemical Resistance Chart
Color coded pages
- Gray – General information
- Green – 1 and 2-wire braided hose and matching 12/JB12 couplings
- Purple – 100R12 Series hose and matching 40/JB40 couplings
- Yellow – 4 and 6-spiral hose and matching 60/JB60 couplings
- Blue – Oil Return and Transportation (Air Brake) hose and field attachable (reusable) couplings
- Red – Crimping equipment and accessories
Pictures and drawings included for all couplings
For any questions about our updated Hydraulic Hose Product Guide, please contact us.
